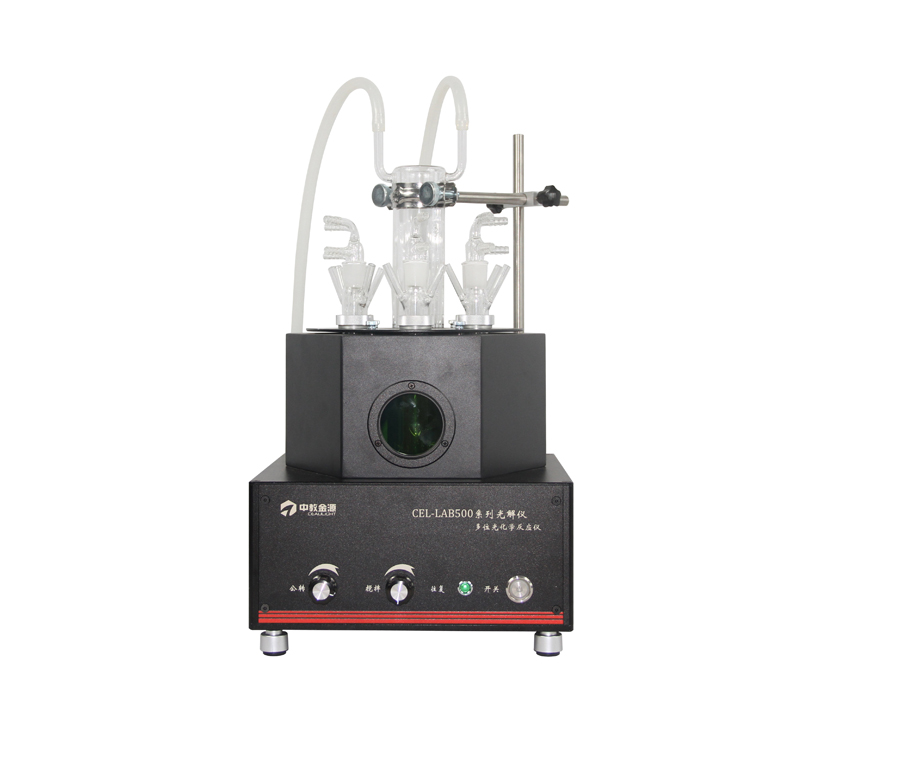

CEL-LAB500 multi-position photochemical reaction instrument (photolysis instrument)

Model:CEL-LAB500

Place of Origin:Beijing

Brief introduction:Widely used in photochemical catalysis, chemical synthesis, environmental protection, life science and other research fields

Contact now

Product application

Widely used in photochemical catalysis, chemical synthesis, environmental protection, life science and other research fields

 Detailed introduction

Serial numberConfigurationDescription
CEL-LAB500Light source, box, filter (ultraviolet, visible), reaction tube (quartz + glass) 1000W temperature control water machine (optional)Basic configuration type

CEL-LAB500E4

Light source, rotatable main engine, box, filter (ultraviolet, visible), reaction tube (quartz + glass) 1000W water temperature control machine (optional)

Realize the rotation of the 12-bit reaction tube around the light source and improve the irradiation uniformity.


CEL-LAB500 product features

1.Multiple sample experiments were carried out at the same time (6-12 sample analysis) /Rapid screening of catalysts/Parallel sample analysis

2.Rotation reaction form, built-in magnetic stirring, internal light source with (double-layer quartz cold trap) fully exposed to light

3.Configure the filter observation window to observe the reaction state of the sample.

4.The light source controller can adjust the current to control the light intensity.

5.The main engine supports cooling water circulation to avoid high temperature of light and heat.

6.The protective box of hydraulic rod is convenient for instrument maintenance and sample replacement.

7.Precise control of wavelength range (UV / visible region) by quartz coated filter

8.Match: xenon lamp / mercury lamp / (power optional)

9.System standard: xenon lamp light source / mercury light source

10.Optional low temperature cooling water circulation machine

11.Note: customers are strongly recommended to configure cryogenic cooling circulating pumps


Specification parameter

Light source part

1.All the light sources contain independent power control systems.

2.Simulated sunlight and visible light catalysis

3.Xenon lamp light source: input power 500W, 300W, 100W, 1000W optional

4.Metal Halide Lamp: 400W, 250W optional

5.UV photocatalysis and photochemical synthesis

6.Mercury lamp light source: 500W, 300W, 100W, 1000W optional

7.Low pressure mercury lamp: 10W254nm, 10W185nm optional


System host part

1.Box size :400*400*700mm

2.Cooling mode:Circulating air cooling

3.Power control:Fans, light sources, other electrical equipment

4.Power supply:220V

5.Maximum power:1000W

6.Observation window:Two 50*50mm (anti-UV and anti-glare)

7.Internal ring reaction platform

8.Integrated multiple magnetic stirring device, stirring speed 2500RPM

9.Built-in high transmission quartz cold trap, light source cooling and filtering infrared light


Cooling part

It is recommended to configure cooling circulating water pump.
