Solar cell IV test system

Model：Not yet

Place of Origin：Beijing

Brief introduction：Of all the performance characterization methods for solar PV devices, IV, PV characterization is undoubtedly one of the most intuitive, effective and widely used methods。Through measuring the I-V ,P-V curves the user can determine physical performances of devices such as photo-electric conversion efficiency, fill factors and so on. Such data is important for reliable work in research and quality inspection. Ceaulight supply the SolarIV system and the most perfect, professional technical support.

Contact now

Of all the performance characterization methods for solar PV devices, IV, PV characterization is undoubtedly one of the most intuitive, effective and widely used methods。Through measuring the I-V ,P-V curves the user can determine physical performances of devices such as photo-electric conversion efficiency, fill factors and so on. Such data is important for reliable work in research and quality inspection. Ceaulight supply the SolarIV system and the most perfect, professional technical support.

Instrument function: solar cell IV characteristic measurement and analysis

Including: 1) Measure IV and PV curves under light and dark conditions; 2) Measure open circuit voltage Voc, short circuit current Isc, short circuit current density Jsc, maximum power voltage Vmpp, maximum power current Impp, fill factor FF, photoelectric conversion efficiency Eta

Instrument advantages

1) Full IV、PV characteristic measurement and analysis solution.

2) Complies with IEC international standard

3) Standard solar analog light source

4) Original imported KEITHLEY2400 series test source table

5) Optical power density meter, imported sensor probe

6) Calibration of standard solar cells

7) Standard sample test bench

8) Chinese software interface, compatible with various systems

9) Graphical interface software, easy to operate

10) Support Excel, ASCII, XML format data export

11)Report printing function, automatically generate a complete , test report

Technical index

Items	Indicators and descriptions
Spectral Matching	AM1.5G Class A Match
Spot irradiance	800-2000W/m²
Maximum measurement area	50mm×50mm(Diameter 60mm)
Current measurement	1nA—1.05A（3.15A）
Voltage measurement	200μV—21V（210V）
Power meter probe	190nm-11000nm Precision0.001mw
Standard battery	20mm*20mm
Light spot uniformity	<5%
Light intensity stability	<2%（rms）
Electrode connection	Four-probe method

System standard configuration

No.	Product Name	Model	Configuration
01	Solar cell I-V characteristic measurement system	CEL-IV	1) Test workstation (including brand-name computer) 2) IV characteristics tester (Keithley KEITHLEY 2401) 3) Workbench, sample table 4）Data transmission line 5）IV characteristic test software 6) Full Chinese version control software, detailed data output

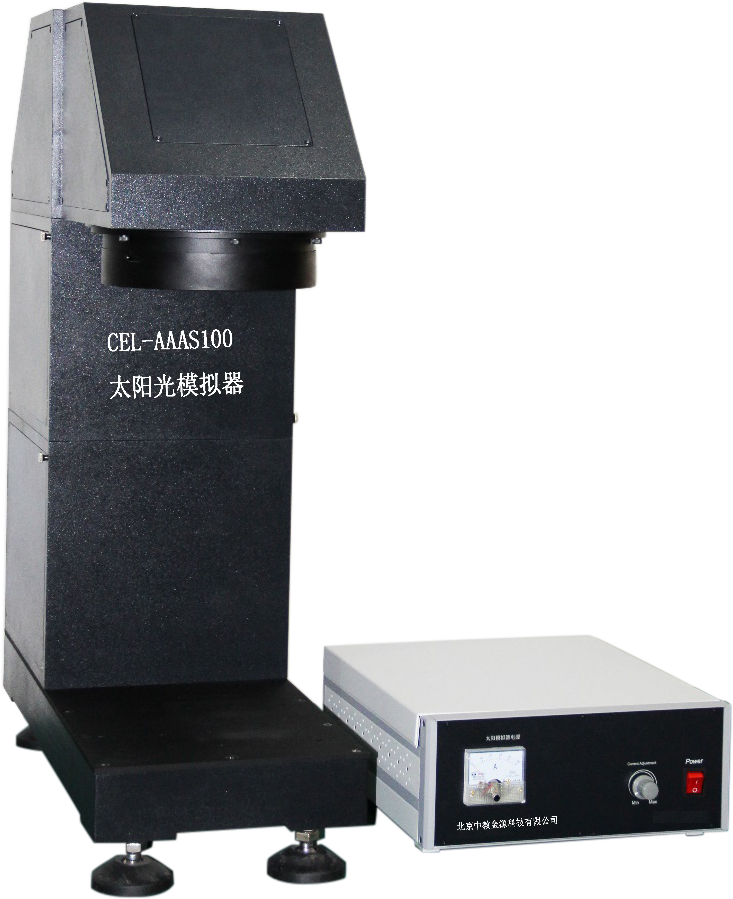

02	Solar Sunlight Simulator	CEL-S500	1）Highly stable light source system 2）Highly stable power supply system 3) Parallel light path lens 4）Light path steering filter head 5）Full spectrum reflection filter (6) AM1.5 simulated daylight filter
03	Standard Solar Cells	CEL-RC	1）CEL-RCCN monocrystalline silicon standard solar cells 2）CEL-RCCO polycrystalline silicon standard solar cells Choose any one standard solar cell with standard test report
04	Full Spectrum Light	CEL-NP2000 CEL-FZ-A	1）Photoreceptor probe 2）Light-sensitive data collector 3）Domestic control instrument 4）Measuring range: 2000mw, precision 0.001mw
