Product Applications

   Among all the performance characterization means of solar photovoltaic devices, IV characteristic test is undoubtedly the most intuitive, effective and widely used one. By measuring the IV characteristic curve and further analyzing the data, we can directly understand the physical properties of PV devices, including the efficiency of photoelectric conversion and fill factor. These data can provide a reliable basis for the research, quality control and application of PV devices. We provide cost-effective IV characteristic testing system and the most complete and professional technical support.

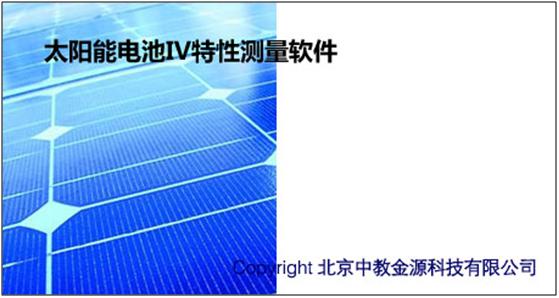

Software startup interface

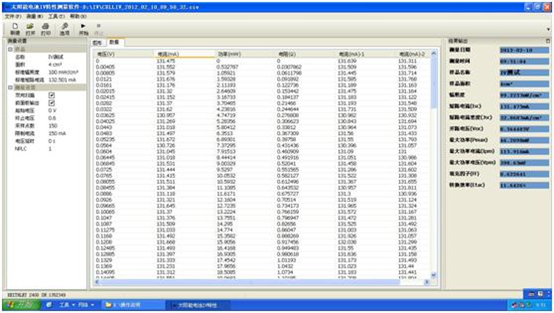

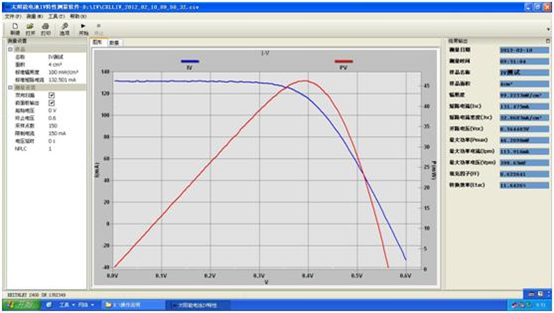

Software main interface

Advantageous features

1）Complete IV characteristics measurement and analysis solutions

2) Test method in line with IEC international standards

3) Probe shadow minimization, reduce measurement errors

(4) Temperature control function, IEC standard test conditions

5) Vacuum adsorption function, sample fixation more convenient

6) Graphical interface software, easy to operate

7) Support Excel, ASCII, XML format data export

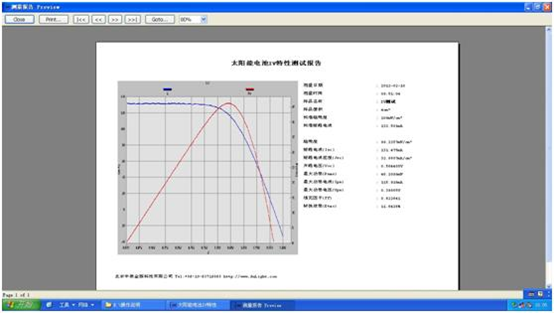

8) Report printing function, automatically generate a complete test report

Software advantage

1) Measurement of IV curves under light conditions and dark conditions.

2) Measurement of open circuit voltage Voc, short circuit current Isc, short circuit current density Jsc, maximum power voltage Vmpp, maximum power current, fill factor, photoelectric conversion efficiency

3) Standard measurement condition correction function (IEC standard)

(4) Standard solar cell correction function

5) Current source using the original U.S. imported Keithley 2400 source meter, can be set -210V ~ 210V voltage output, current measurement maximum 1.05A.

6）Voltage scan can be set up to 2500 scan points, customizable scan start voltage, scan end voltage; bidirectional scan output can be defined (start value → end value, end value → start value).

7) Complete saving of detailed measurement data.

8）Graphic output for I-V, P-V curve, can be exported to BMP, JPG format.

9）Measurement files can be exported to Excel, txt text format, and complete test reports can be printed.

10）Full Chinese interface, easy to operate.

System configuration.

Technical specifications.
