CEL-QPR150 side irradiation full quartz reactor

Model:CEL-QPR150

Place of Origin:Beijing

Brief introduction:The CEL-QPR150 side-illuminated all-quartz reactor is formed by welding technology, and the side illumination makes the light directly contact with the reaction solution, which improves the use efficiency of light. Ultraviolet high-transmittance quartz is used for all the light, and the flange seal is equipped with PEEK, stainless steel and quartz glass reactor cover to ensure the sealing of the reactor.

Contact now

The CEL-QPR150 side-illuminated all-quartz reactor is formed by welding technology, and the side illumination makes the light directly contact with the reaction solution, which improves the use efficiency of light. Ultraviolet high-transmittance quartz is used for all the light, and the flange seal is equipped with PEEK, stainless steel and quartz glass reactor cover to ensure the sealing of the reactor. Various applications of one reactor in photocatalysis, photocatalysis, catalysis, gas-solid, gas-liquid, liquid-solid and heterogeneous reactions have been realized. Different electrode channels, inlet and outlet holes can be customized according to the demand, and vacuum and inert gas protection can be realized.

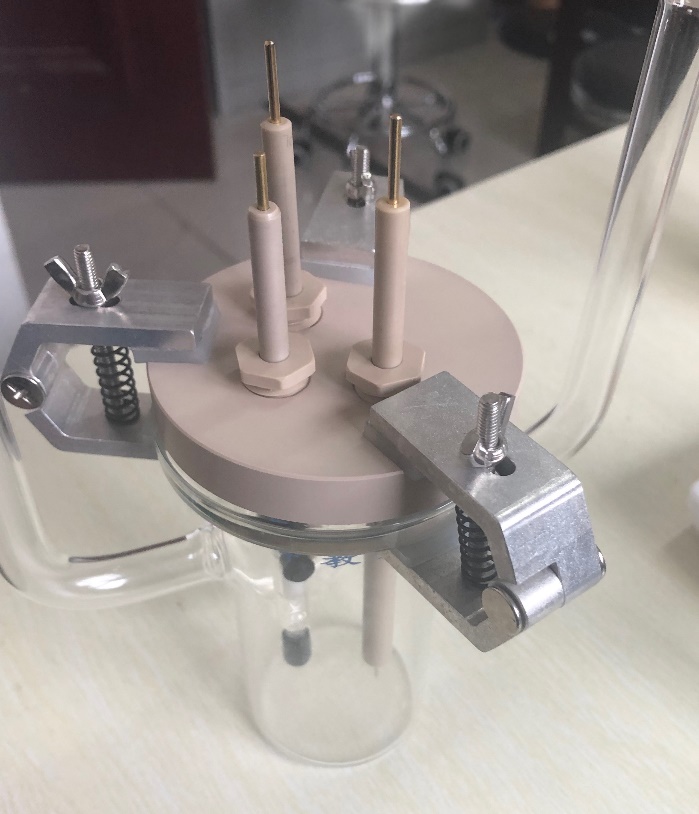

        CEL-QPR150 side illuminated all quartz reactor, volume 150ml, optical window specification 40mm 60mm, mainly equipped with all quartz reactor body, corrosion resistant O-ring, PEEK cover three electrodes, C clip, custom PEEK calomel electrode, custom PEEK platinum electrode, custom PEEK platinum electrode clip and so on.


ModelDescriptionPicture
CEL-QPR150CThe volume is 150ml and the optical window is 40mm to 60mm, which is mainly combined with photocatalytic activity evaluation system and photocatalytic reactor.
CEL-QPR150CHThe volume is 150ml, the optical window specification is 40mm to 60mm, mainly with photocatalytic activity evaluation system, photocatalytic reactor, including integrated quartz water jacket interlayer, temperature-controllable water jacket interlayer.
CEL-QPR150LWith a volume of 150ml and a light window specification of 40mm to 60mm, it can realize photocatalysis, side illumination photocatalysis and heterogeneous reaction, and can cooperate with various connectors to realize off-line or on-line photoelectrochemical experiments.
CEL-QPR150LHWith a volume of 150ml and a light window specification of 40mm to 60mm, it can realize photocatalysis, side illumination photocatalysis and heterogeneous reaction, and can cooperate with various connectors to realize off-line or on-line photoelectrochemical experiments, including integrated quartz water jacket interlayer and temperature-controllable water jacket interlayer.
