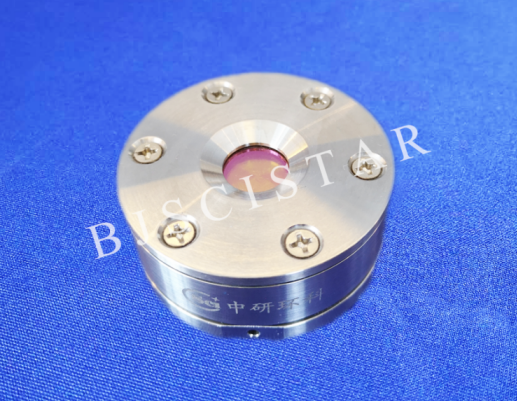

The LIB-IR cell is one type of in-situ Lithium-ion-battery cells for IR characterization. The in-situ cell can be assisted in collecting the in-situ IR data online in the process of charging and discharging, note: all tests should be operated at reflective modes. It is convenient for user to take research on the structural evolution and related kinetic studies of the electrode materials during the corresponding electrochemical process.

Main features

1. The in-situ cell is designed for in-situ IR spectrum, which is based on the basic principle of lithium-ion or other rechargeable batteries;

2. During the charging-discharging process, the in-situ IR data of the electrode materials can be collected online (reflection mode) by this in-situ cell;

3. To match different models of IR spectrometers and infrared spectrometers, the in-situ cell is designed with a favorable size of φ50*<30mm;

4. For IR detection, the minimum working distance can be controlled into 5mm, and can be adjusted according to customer requirements ;

5. window diameter:> = φ16, can be customized according to customer requirements;

6. the IR angles: >=60°。
