SSB-HT cell

Model:SSB-HT

Place of Origin:Not yet

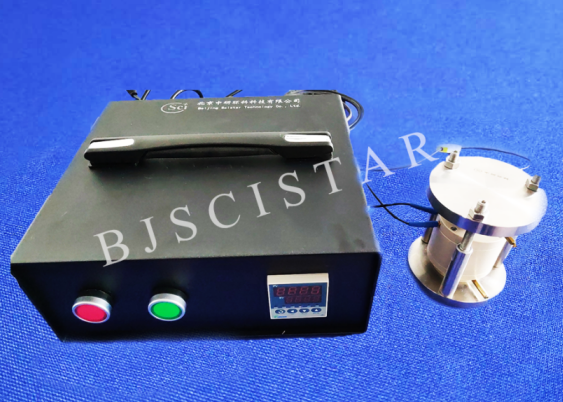

Brief introduction:The SSB-HT cell is an in-situ cell, which is suitable for an all-solid-state electrolyte batteries with a controllable temperature environment. The device simulates the structure and working principle of the solid electrolyte battery, and adds temperature parameters to test and study the electrical properties of the solid electrolyte material.

Contact now

Main features



1. The device is designed for all solid-state batteries with a controllable temperature environment, which can effectively adjust the temperature of the battery, the adjustment range: RT-150;



2. The temperature adjustment is effectively controlled by the temperature controller (computer program control software can be equipped to realize the man-machine interface);



3. The temperature of the electrode material can be adjusted at any time during the charging and discharging process of the in-situ cell;



4. Fluorine gaskets are used to seal all the cell, making sure the overall system sealing;



5. In the assembly process, the electrode materials and electrolyte can be easily assembled; meanwhile, all components can also be easily disassembled and cleaned.



6. The in-situ cell can be reused.
