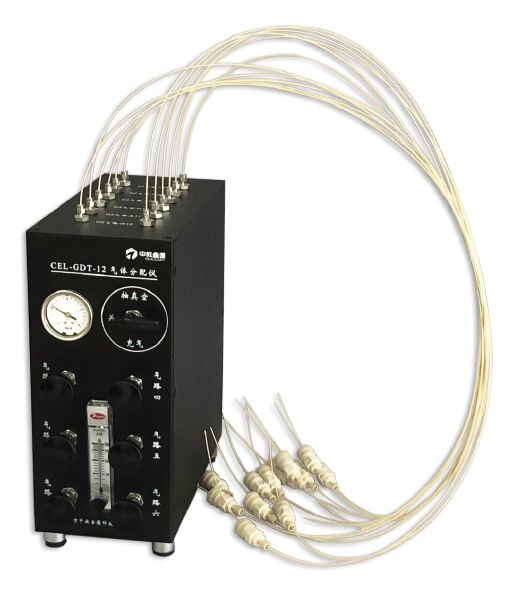

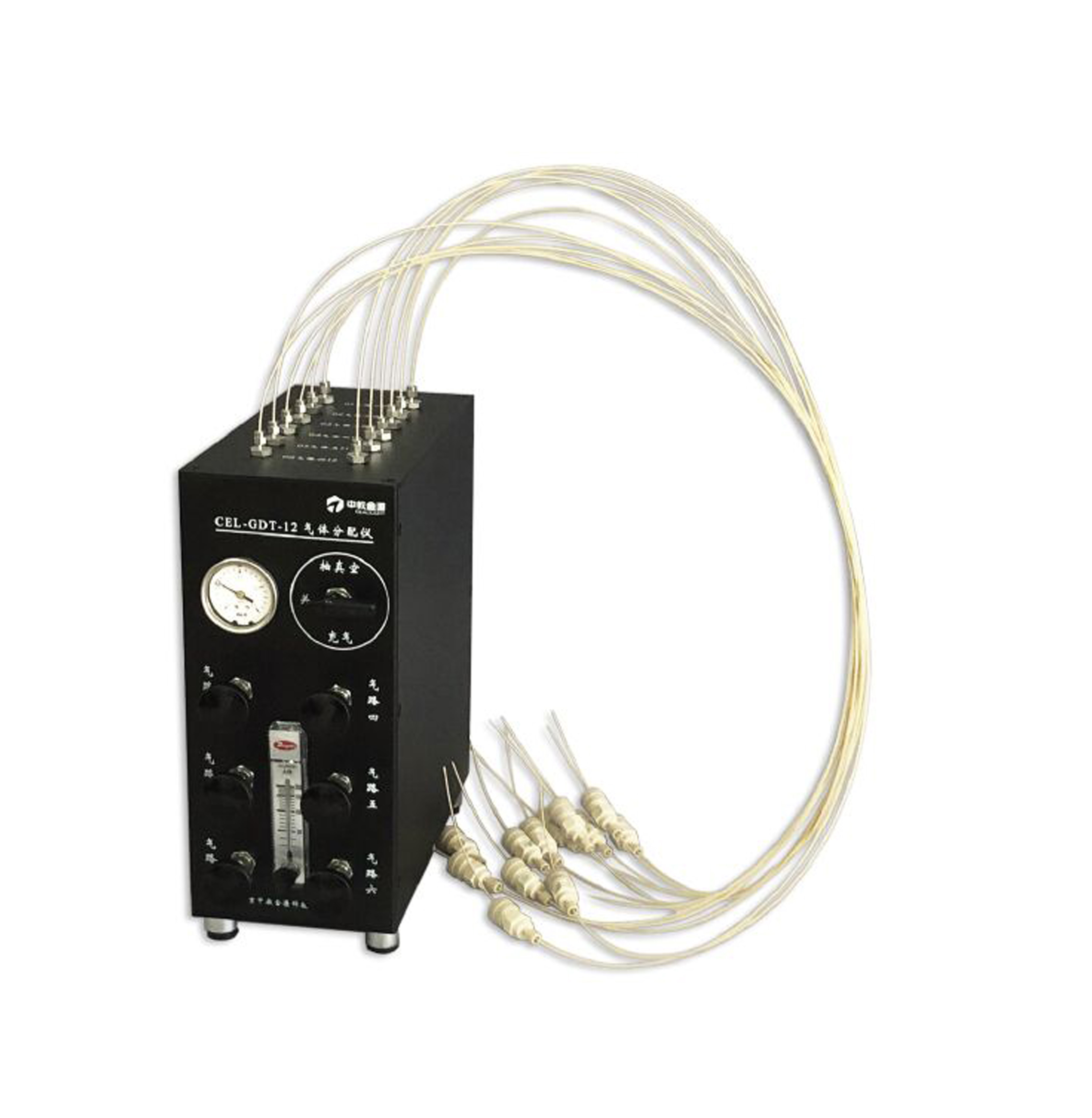

CEL-GDT-12 Gas Distributor

Model:CEL-GDT-12

Place of Origin:beijing

Brief introduction:CEL-GDT-12 gas distributor is used for multi-position reaction instruments such as multi-position photolysis instrument, parallel photochemical reaction instrument, LED photo-chemical reaction instrument, etc., to realize the functions of vacuuming, inflating, bubbling and independent control of reaction tube ;Achieved 1 air intake, 12 outlets, controlled by Anlok stainless steel valve imported, 1 / 16inchPEEK pipeline for branch line, which can be inserted into the reaction liquid, and PEEK material for 8mm--1 / 16inch joint.

Contact now

CEL-GDT-12 gas distributor is used for multi-position reaction instruments such as multi-position photolysis instrument, parallel photochemical reaction instrument, LED photo-chemical reaction instrument, etc., to realize the functions of vacuuming, inflating, bubbling and independent control of reaction tube ;Achieved 1 air intake, 12 outlets, controlled by Anlok stainless steel valve imported, 1 / 16inchPEEK pipeline for branch line, which can be inserted into the reaction liquid, and PEEK material for 8mm--1 / 16inch joint.



Technical Parameters

Items

Parameters

Function

Vacuuming, inflation, bubbling, independent   control

Allocated digits

12 positions, connector 1 / 16inch, 1 /   16inch PEEK pipeline 1m * 12

PEEK接头

8mm--1/16inch*12个

Flowmeter

Dywer rotameter   <200ml/min

Pressure gauge

-0.1~0.3Mpa

valve

Anlok stainless steel valve, 6 needle   valves, 2 ball valves

Inlet joint

3mm national standard connectors (optional   1 / 8inch)* 2, regulator valve*1

Vacuum interface

The balloon valve is equipped as standard   to prevent the vacuum pump oil from being sucked back

Allow matching instruments

CEL-LAB500E4 photolysis instrument,   LAB200-E7 parallel photochemical reaction instrument, CEL-PCRD300-12   photochemical reaction instrument

Options

Vacuum pump + electromagnetic baffle valve
