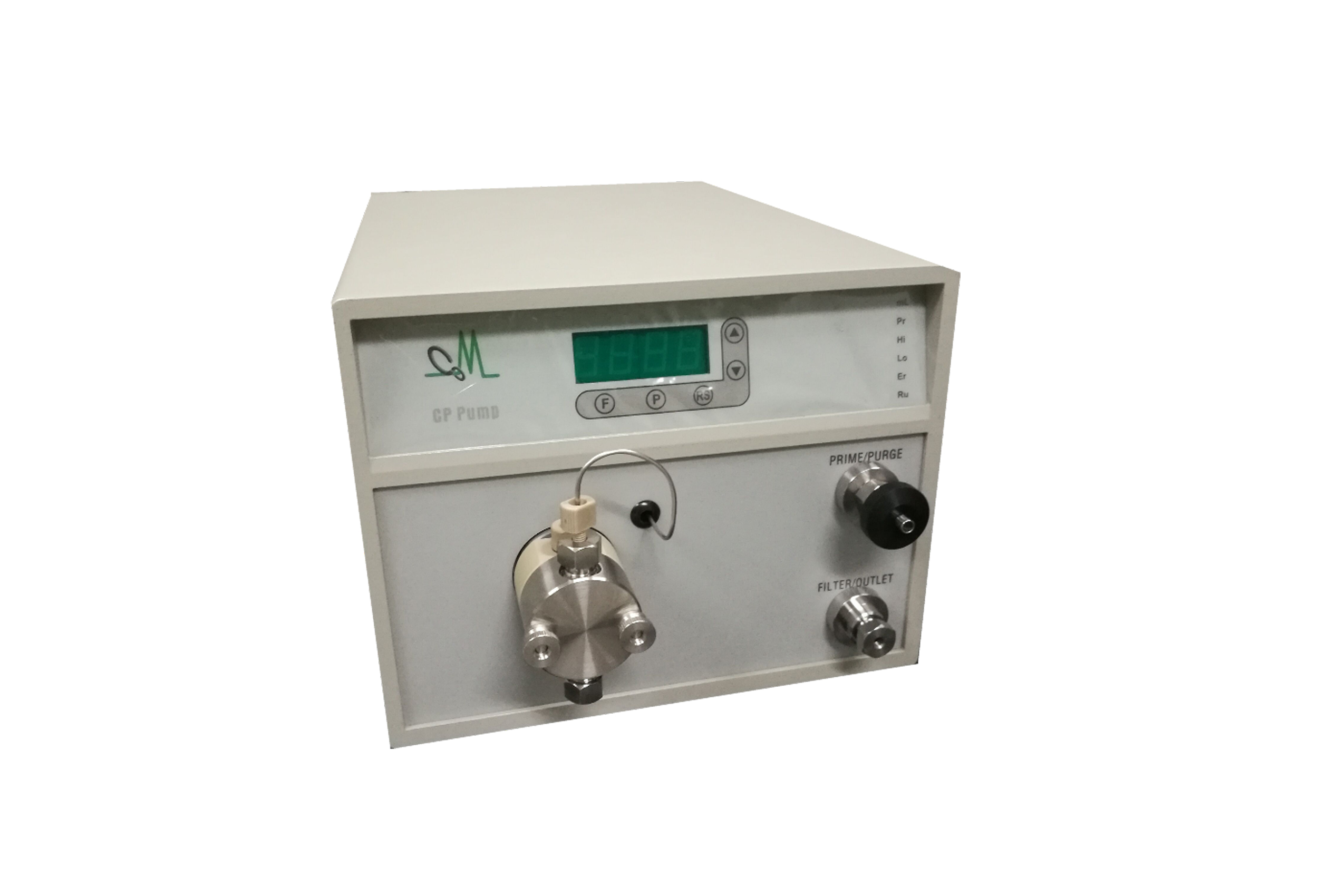

CP-M constant current pump/advection pump/metering pump/chemical pump

Model：Cometro,

Place of Origin：USA

Brief introduction：The low internal volume design of the equalizer, with electronic compensation and fast filling drive control, truly achieve no pulse flow rate, can meet the requirements of harsh applications.

Contact now

Product introduction

1. Adopts low internal volume design of the speed equalizer, with electronic compensation fast filling type drive control, truly achieve no pulse flow rate, can meet the harsh application requirements. The maximum pressure is up to 6,000 psi and the flow rate ranges from 0-80 mL /min.

2. Electronic compensation and motor control system designed with new technology, exquisite and unique motor drive system, non-contact pressure sensing system constitute a new drive control center of CP-M series constant current pump/advection pump/metering pump/chemical pump.

3. Unique pump head suspension, energy storage equalizer, fast filling and one-way valve design, perfect the flow path center of CP-M series constant current pump. The flow stability and reliability of CP-M series constant current pump/advection pump/metering pump/chemical pump are realized.

4. Simple operation interface, flexible keyboard/microcomputer control, CP-M series constant current pump powerful function in the finger.

Product catalog

article number	describe
CP-M210	CP Pump,0.01-10mL/min, 6,000 psi, Flow Rate \ No Pressure Display, SS
CP-M205	CP Pump,0.001-5mL/min, 6,000 psi, Flow Rate \ No Pressure Display, SS
CP-M250	CP Pump,0.1-50mL/min, 1500PSI, Flow Rate \ No Pressure Display, SS
CP-M310	CP Pump,0.01-10mL/min, 6,000 psi, SS, Flow Rate, Pressure, Maximum Pressure Limit, Minimum Pressure Limit, Operating Status, Warning
CP-M305	CP Pump,0.001-5 ml /min, 6,000 psi, SS, Flow Rate, Pressure, Maximum Pressure Limit, Minimum Pressure Limit, Operating Status, Warning
CP-M350	CP Pump, 0.1-50ml /min, 1500PSI, SS, Flow Rate, Pressure, Maximum Pressure Limit, Minimum Pressure Limit, Operating Status, Warning

Product characteristics

1. Metering application

2. Applications that meet the requirements for biocompatibility

3. Research and development of high pressure and high precision fluid flow

Technical indicators

accuracy	1%
precision	0.2%RSD
size	175(H) X 225(W) X 305(D) mm
weight	11KG
power	230V/115V,50/60Hz
Set inside the	Bypass valve \ self-cleaning kit
Remote input	Frequency input, voltage input
Digital transmission	RS232
application	Chemical reaction/infusion/metering
Liquid road materials	Optional PEEK or 316 stainless steel
