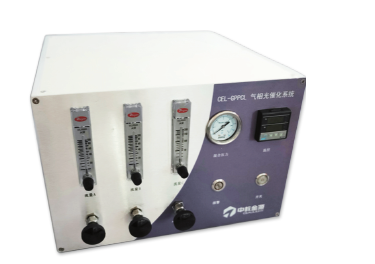

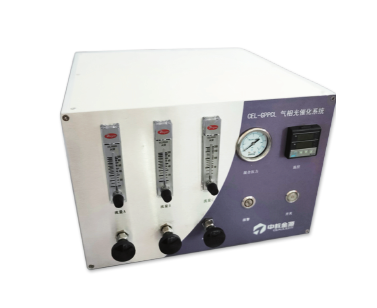

CEL-GPPCL gas phase photocatalytic system

Model:CEL-GPPCL

Place of Origin:Beijing

Brief introduction:The CEL-GPPCL gas phase photocatalytic system can achieve multiple gas distribution and mixing

Contact now

The CEL-GPPCL gas phase photocatalytic system can achieve multiple gas distribution and mixing, using rotameter imported from the USA to achieve arbitrary gas ratios according to demand, gas mixing chamber and pipeline temperature control (<200°C), the outlet line using self-limiting temperature pipeline. The system uses a multi-way gas distribution system, multi-stage mixing and reaction, pressure-resistant stainless steel piping, and the reaction section is equipped with various mixing kettles, reactors, reactors and photocatalytic reactors as required to realise the corresponding photocatalytic experiments.

The gas phase photocatalysis online test system is mainly applied to continuous phase photocatalysis, gas-solid phase photocatalysis, gas-liquid reaction photocatalysis, especially in the field of pollutant degradation, catalytic synthesis, sulphurisation reaction, thermal catalysis and so on to obtain very good application. It can be applied to photocatalytic nitrogen fixation, photocatalytic carbon fixation, CO2 photocatalytic reduction, acetaldehyde and formaldehyde photocatalytic degradation, VOCs catalytic degradation, simple photothermal catalysis, etc.


Technical specifications:


ProjectsParameters
System pressure resistant design2.0Mpa
Pneumatic circuit3 way (3 way flow control), inlet air with filter and check valve
Flow controlUS original DWYER rotameter (100ml/min*2;240ml/min,accuracy 3%)
Pressure displayMixing chamber pressure gauge display
Mixing room100ml, mixing chamber and line temperature control: room temperature - 200°C
Export pipelineSelf-limiting pipework in stainless steel
Pipeline valvesAll imported anlok valves and fittings, stainless steel 316L
Form factor400mm*400mm*270mm
Optional reactor1.CEL-GPRT100 Tripod reactor (gas-solid)

2.CEL-APR100H temperature-controlled integrated reactor (gas-liquid)

3.CEL-HPRT100+ High pressure photocatalytic reactor (high pressure multiphase)

4.CEL-GPCR100 gas phase photocatalytic stainless steel national standard reactor5. Photochemical experiment chamber LB70

6. Matching light source system of xenon lamp, mercury lamp, LED, etc.
