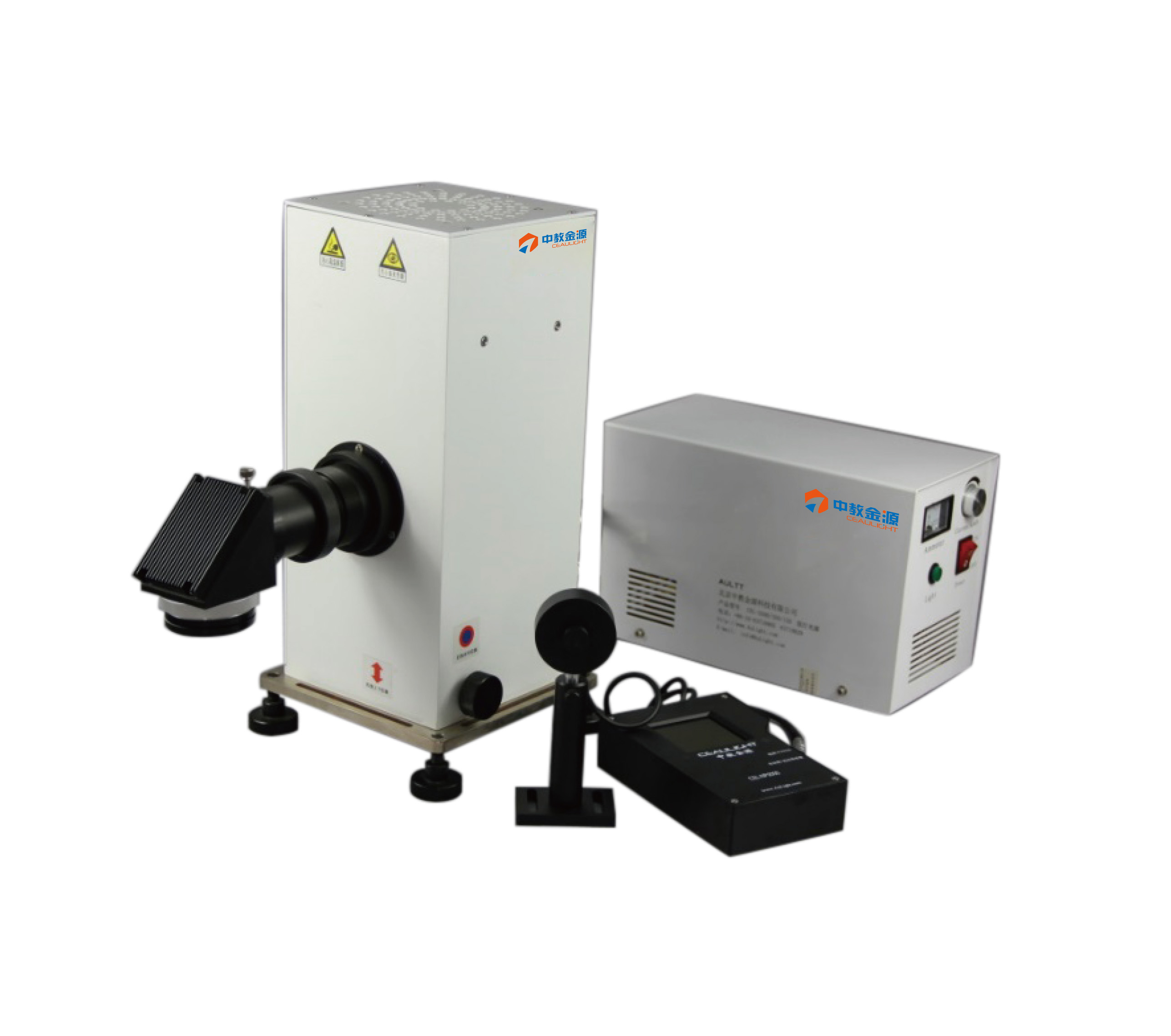

CEL-S500 Simulated Sunlight Xenon Light Source

Model:CEL-S500、CEL-S500R3

Place of Origin:beijing

Brief introduction:Not yet...

Contact now

introduction

The CEL-S500 simulated Sunlight xenon light source is a research-grade xenon light source specifically for solar cells; a 500W high-voltage short-arc spherical xenon lamp is installed inside the light source to form an arc discharge under high-frequency and high-pressure excitation. The high-pressure short-arc spherical xenon lamp is a point light source with a small luminous point. When ignited, it emits a strong and stable strong continuous spectrum of ultraviolet, visible, and near infrared. The visible color is very similar to sunlight, with high energy density and stable output. , Not only used in solar cell research, but also used in photoelectric response device testing, solar cell IV performance testing, surface photovoltage spectroscopy, biological light, photocatalysis, surface defect analysis and other fields.

CEL-S500 simulated Sunlight xenon light source can be compatible with various specifications and brands of filters and lenses (25.4mm, 50.8mm, M52, M62, etc.). Visible light output, solar cell testing, simulated sunlight, point light source output, optical fiber extraction, uniform parallel light. With the use of AM1.5 filter, it can achieve a better fit with the sunlight spectrum, and the product performance application is better. With the use of adjustable light, the irradiation area of the light spot can be adjusted, and the irradiation area is continuously adjustable from 3mm to 50mm in diameter.


Product application

Solar cell testing, simulation of sunlight, point light source output, optical fiber extraction, uniform parallel light.



Simulated daylight xenon lamp source

Model

Configuration and function

Remarks

CEL-S500P2

1 set of high stable xenon lamp power supply, 1 set of xenon lamp box (including three-dimensional mobile platform), 1 domestic 500W xenon lamp bulb, 1 set of converging    point light source light path

Spot light type

CEL-S500

1 set of high stable xenon lamp power supply, xenon lamp box (including three-dimensional mobile platform), 1 home-made 500W xenon lamp bulb, 1 set of converging point light source, 1 set of parallel light path, light path steering device can be equipped with all kinds of filter, equipped with filterAREF

Basic type
CEL-S350

1 set of high stable xenon lamp power supply, xenon lamp box (including three-dimensional mobile platform), 1 home-made 350W xenon lamp bulb, 1 set of converging point light source, 1 set of parallel light path, light path steering device can be equipped with all kinds of filter, equipped with filterAREF

Basic type
CEL-S500R3

1 set of high stable xenon lamp power supply, 1 set of xenon lamp box (including three-dimensional mobile platform), 1 German Osram 500W xenon lamp bulb, 1 set of converging point light source light path, 1 set of parallel light path, light path steering device can be equipped with all kinds of filter, equipped with filter AREF

Basic type
CEL-S500R5

1 set of high stable xenon lamp power supply, 1 set of xenon lamp box (including three-dimensional mobile platform), 1 set of German Osram 500W xenon lamp bulb, 1 set of converging point light source light path, 1 set of parallel light path, optical path steering device can be equipped with various filters, equipped with filter AREF, diameter 5mm long 1200mm liquid crystal fiber, AM1.5 analog solar filter

High matching type

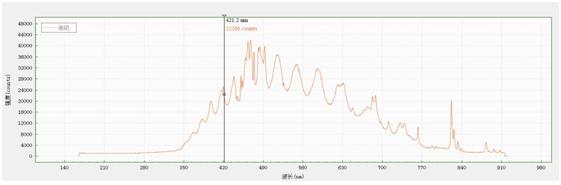

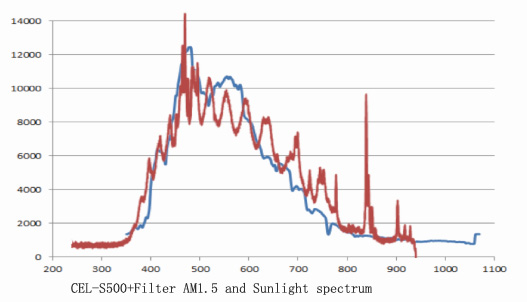

AM1.5 simulated sunlight spectrogram (measured by aultt-p series fiber spectrometer)

Advantages and characteristics:

1.High-quality optical lens to improve the efficiency of light collection

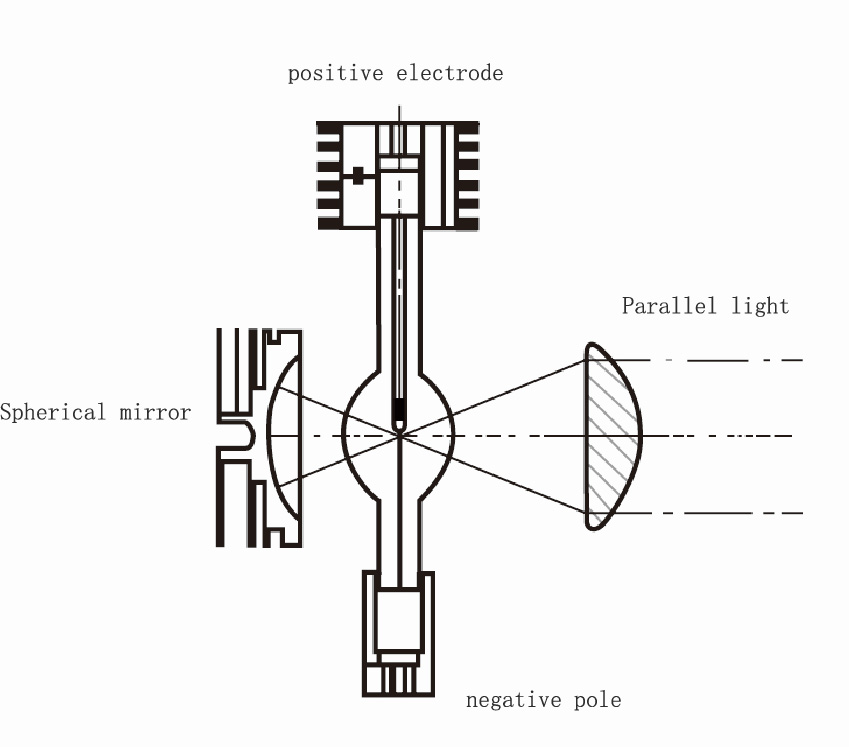

2.Using back light mirror structure to improve light collection efficiency

3.Built-in three-dimensional adjustment platform, which can realize optical precision adjustment.

4.A full range of accessories, optical fiber connections and various filters

5.Color temperature up to 6000K, simulating sunlight

6.The cooling mode adopts fan air-cooled cycle refrigeration.

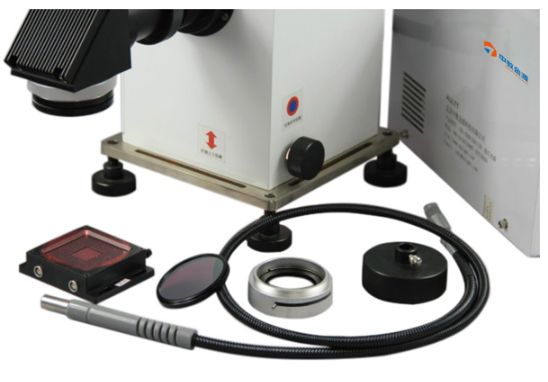

Combined fittings (optional)

1.Accessories can be used with CEL-HX series xenon lamp light source.

2.With the use of xenon lamp light source, you can choose a variety of accessories, can be equipped with lenses, filters, optical fibers, etc., suitable for different experimental needs.

3.Parallel light lens set sleeve.

4.AM1.5G daylight spectrum fitting filter.

5.Optical steering gear

6.Optical fiber connection and output device


Technical Parameters for CEL-S500


Items

Parameters

Bulb type

Ball xenon lamp (Made in China or Osram optional)

Output Light power density

0.1-5Sun1Sun=100mw/cm2

Output power

300-500W

Current adjustment

15A-25A

spectrum

300-2500nm

light intensity(mw/cm2)

10-500

Power supply stability

±0.01%

Light source stability

±0.5%

Parallel beam diameter

50-60mm

Spot light output diameter

2-3mm

Zoom

Zoom function can change the size of the   light output circular spot

Bulb life

500-1000hours

Cooling method

Air
